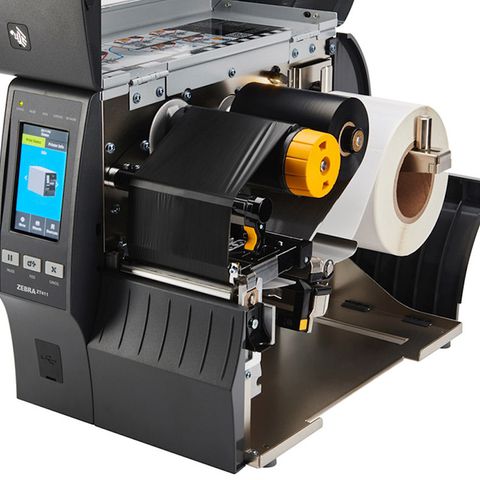

Zebra ZT411 Spec sheet

Đăng bởi Okami 06/02/2022
Zebra ZT411 Spec sheet

Zebra ZT411 Spec sheet

Giữ cho các hoạt động quan trọng của bạn luôn hoạt động hiệu quả với Zebra ZT411 bền bỉ của Zebra. ZT411 cung cấp công nghệ tiên tiến giúp nâng cao tính linh hoạt, dễ sử dụng và hiệu suất lên một tầm cao mới. Có sẵn trong ba độ phân giải in là 203-300 và 600Dpi , Máy in mã vạch Zebra ZT411 đáp ứng một loạt các ứng dụng trong suốt quá trình sản xuất, vận chuyển và hậu cần, bán lẻ và hơn thế nữa. Màn hình cảm ứng điện trở với kích thước lớn đảm bảo thuận tiện trong quá trình cài đặt và theo dõi. Có thể lắp thêm option RFID giúp bạn có thể in và mã hóa tem nhãn RFID một cách dễ dàng nhất. Và bộ phận CNTT của bạn sẽ thấy máy in ZT411 dễ dàng tích hợp và quản lý, nhờ bộ ứng dụng, tiện ích và công cụ dành cho nhà phát triển của Zebra’s Print DNA - tất cả đều được cung cấp bởi Link-OS®. Kết quả? ZT400 cung cấp tính linh hoạt, độ tin cậy và hiệu suất để đáp ứng nhu cầu in ấn công nghiệp của bạn - hôm nay và trong tương lai.


Zebra ZT411 Spec sheet gồm 2 Cổng USB Host linh  hoạt khi sử dụng

Cổng USB Host kép cho phép bạn kết nối trực tiếp nhiều loại thiết bị USB. Sử dụng thẻ nhớ để sao chép phần sụn, tệp và cấu hình hoặc dễ dàng in và chuyển các định dạng. Đơn giản hóa việc nhập dữ liệu bằng cách kết nối đồng thời máy quét và bàn phím - với hai cổng máy chủ, bạn có thể cắm và sử dụng đồng thời nhiều thiết bị ngoại cùng lúc


Zebra ZT411 Spec sheet được thiết kế phù hợp với nhu cầu của tất cả các khách hàng

Bạn có thể tùy chỉnh máy in mã vạch ZT411 với một loạt các tùy chọn có thể được cài đặt trong vài phút. Hai khe cắm USB mở rộng chứa các tùy chọn giao tiếp bổ sung. Ngoài ra, sức mạnh xử lý và bộ nhớ mạnh mẽ có thể hỗ trợ nâng cấp chương trình cơ sở và các công cụ Print DNA mới trong nhiều năm tới.

Zebra ZT411 Spec sheet PHIÊN BẢN ĐÁP ỨNG NHU CẦU CỦA BẠN

Zebra ZT411 có tiêu chuẩn với Ethernet, Serial, USB, 2 cổng USB  và Bluetooth 4.1. Tùy chọn Wi-Fi 802.11ac và Bluetooth để có kết nối không dây nhanh chóng và chính xác.

Zebra ZT411  SERIES SPECIFICATIONS

Zebra ZT411 Spec sheet - thông tin cơ bản

  • Print Methods: Thermal transfer and direct thermal printing
  • Construction: Metal frame and bi-fold metal media cover with enlarged clear
    viewing window
  • Side-loading supplies path for simplified media and ribbon loading
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet,
    Bluetooth 4.1, Dual USB Host
  • 4.3-inch color touch display with intuitive menu for quick operation and settings
    management
  • Bi-colored status LEDs for quick printer status
  • ENERGY STAR qualified


Zebra ZT411 Spec sheet - thông tin đóng gói

Dimensions (closed)*ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H
495 mm L x 269 mm W x 324 mm H
ZT421: 19.5 in. L x 13.25 in. W x 12.75 H
495 mm L x 336 mm W x 324 mm H
Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations.
WeightZT411: 36 lbs./16.33 kg
ZT421: 40 lbs./18.14 kg


Zebra ZT411 Spec sheet - Độ phân giải, bộ nhớ, tốc độ in, cảm biến và chiều dài in

Resolution203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT411 only)
Memory256 MB SDRAM memory
512 MB on-board linear Flash memory
Maximum Print WidthZT411: 4.09 in./104 mm
ZT421: 6.6 in./168 mm
Maximum Print SpeedZT411: 14 ips/356 mm per second
ZT421: 12 ips/305 mm per second
Media SensorsAdjustable dual media sensors: transmissive and reflective
Print LengthZT411
  • 203 dpi: 157 in./3988 mm
  • 300 dpi: 73 in./1854 mm
  • 600 dpi: 39 in./991 mm

ZT421

  • 203 dpi: 102 in./2591 mm
  • 300 dpi: 45 in./1143 mm


Zebra ZT411 Spec sheet - chiều rộng khổ in lớn nhất

Maximum Media Width

ZT411

  • 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter
  • 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind

ZT421

  • 2.00 in./51 mm to 7.0 in./178 mm tear/cutter
  • 2.00 in./51 mm to 6.75 in./171 mm peel/rewind
Maximum Media Roll Size8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media TypesContinuous, die-cut, notch, black-mark


Zebra ZT411 Spec sheet - ribbon ( ruy băng in mã vạch )

Standard Length1476 ft./450 M
WidthZT411: 2.00 in./51 mm to 4.33 in./110 mm
ZT421: 2.00 in./51 mm to 6.85 in./174 mm
Core1.0 in./25 mm I.D.


Zebra ZT411 Spec sheet - nhiệt độ hoạt động

Operating TemperatureThermal transfer: 40º F to 104º F/5º C to 40º C
Direct thermal: 32º F to 104º F/0º C to 40º C
Storage/Transportation Temperature-40º F to 140º F/-40º C to 60º C
Operating Humidity20% to 85% non-condensing
Storage Humidity5% to 85% non-condensing


Zebra ZT411 Spec sheet - phiên bản phần mềm

ZBI 2.0™ — Optional powerful programming language that lets printers run standalone applications, connect to peripherals, and much more.
ZPL and ZPL II® — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
EPL and EPL2™— Eltron® Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)


Zebra ZT411 Spec sheet- dòng điện

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified


Zebra ZT411 Spec sheet - tùy chọn nâng cấp và phụ kiện

CommunicationTwo open communication slots to add internal
cards for:
  • Dual band 802.11ac Wi-Fi and Bluetooth
  • Parallel (bi-directional interface)
  • 10/100 Ethernet
  • Applicator interface
Media Handling
  • Rewind: Internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (factory installed only)
  • Peel: Front-mount, passive peel option
  • Peel: Liner take-up — additional full-roll liner takeup spindle accommodates standard printer base
  • Cutter: Front-mount guillotine cutter and catch tray
  • 1 in. I.D. Core media supply hanger (ZT411 only)
  • Ink-side in ribbon supply (ZT411 only)
RFID
  • Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
  • Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models
  • Adaptive Encoding Technology automatically selects optimum encode settings
  • Field installable on-metal RFID kit available*
Keyboard Display UnitZKDU™ keyboard display units for stand-alone printing applications


Zebra ZT411 Spec sheet - phông chữ và ngôn ngữ lập trình

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
Asian and other international scalable and smooth bitmapped fonts
Unicode™: For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
64 MB user-available non-volatile memory storage for downloadable objects
8 MB user-available SDRAM


Zebra ZT411 Spec sheet - mã vạch mã hóa

Linear Barcodes

Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

Two Dimensional BarcodesCodablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Agency Approvals

Safety and EMCIEC 62368, Class B, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3
Product MarkingsIncluding, not limited to, cTUVus, CE, FCC, ICES-003(B), VCCI, RCM, NOM, S-Mark, CCC, EAC, BSMI, KCC, SABS, In-Metro, BIS.


Zebra ZT411 Spec sheet - giải pháp in ấn và quản lý DNA

Development ToolsWith faster, easier and smarter integration of Zebra printers with your devices and applications, your Zebra printing solutions are up and running in less time, with less cost.
Management ToolsMinimize IT effort and maximize IT control with Print DNA management tools — the easy way to add and manage any number of printers, anywhere — from a handful of printers to thousands of printers all around the world.
Productivity ToolsReach new levels of productivity with innovations that streamline tasks and workflows, optimize device performance and solve tomorrow’s printing problems today.
Visibility ToolsRegardless of whether or not you have an existing Mobile Device Management solution in place, robust visibility tools provide unparalleled insight into printer health, usage and performance.

Zebra ZT411 Spec sheet - Dịch vụ nâng cao

Zebra OneCare Essential and Select Services maximize the availability and productivity of your devices. Key features include 24/7 technical support, comprehensive coverage, advance replacement and software updates. Optional Support and Visibility Services are available. For more information go to
(Note: Service availability may vary by region.)

Footnotes

Features are subject to availability. Specifications are subject to change without notice.

Zebra ZT411 Spec sheet- phần mềm DNA trong in ấn

This printer is supported by our powerful Print DNA suite of applications, utilities and developer tools that give our printers better performance, simplified remote manageability, and easier integration.

Print DNA features may vary by model and a Support Contract may be required. For more information, please visit:
www.zebra.com/printdna
