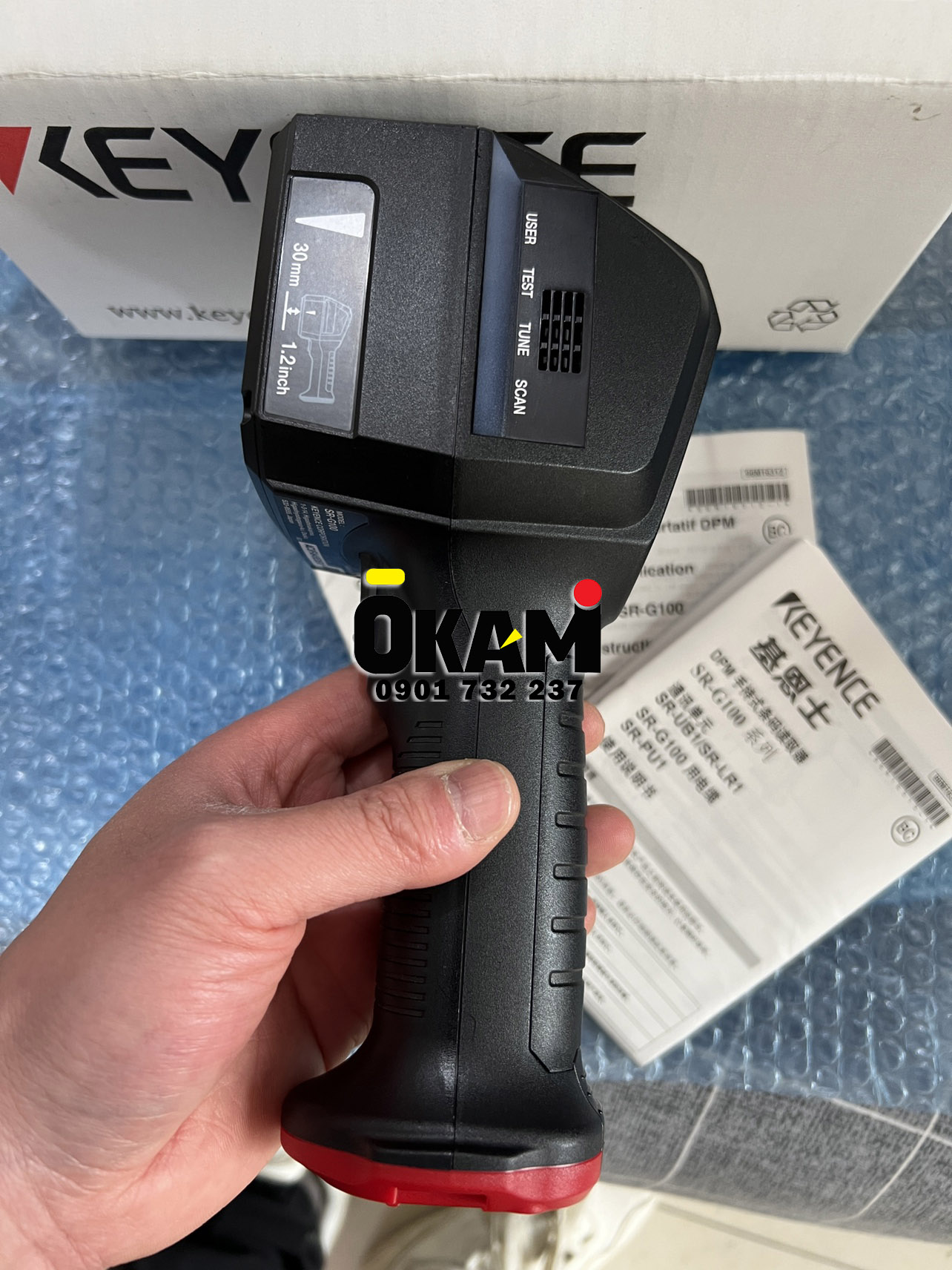

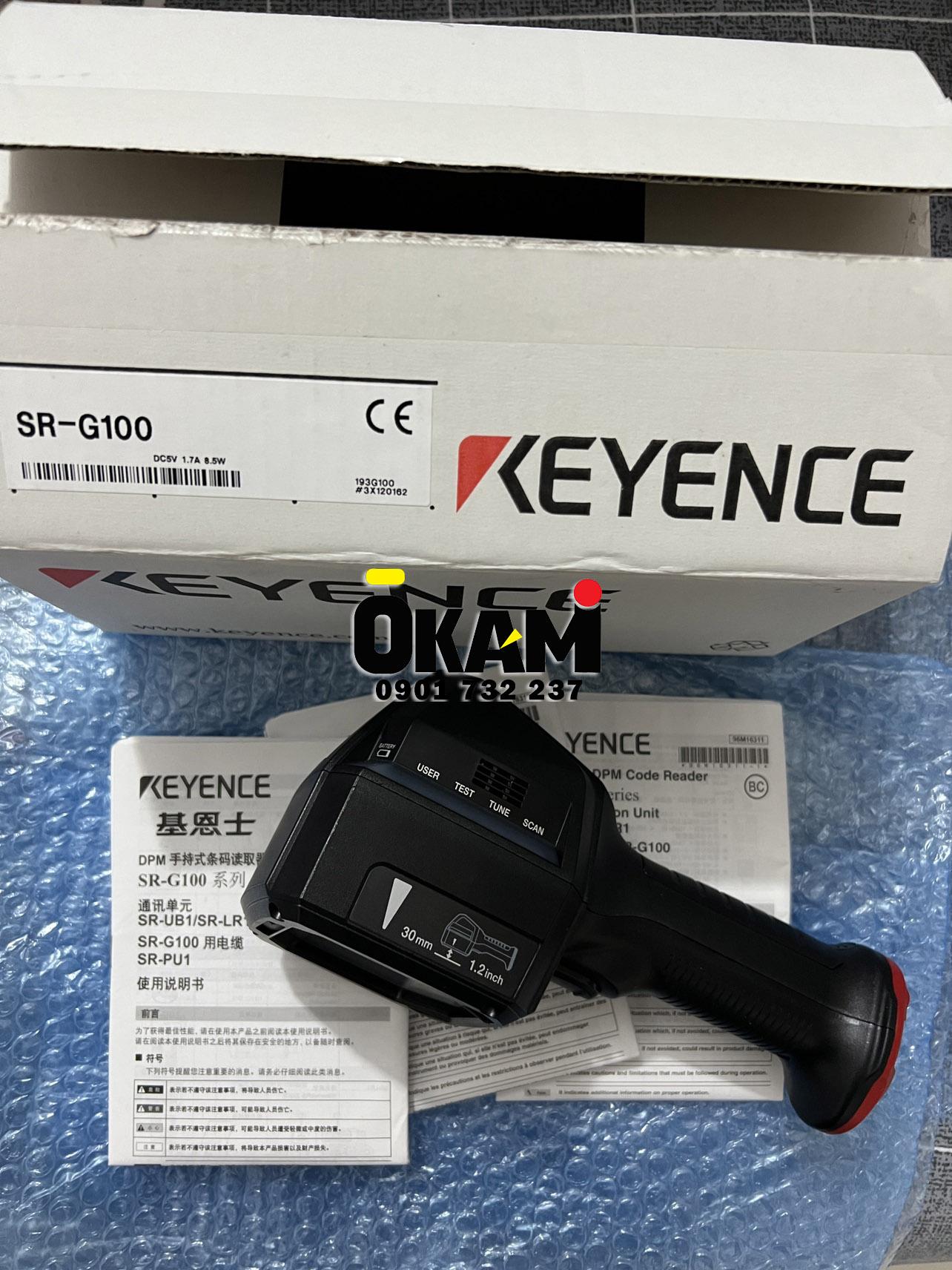

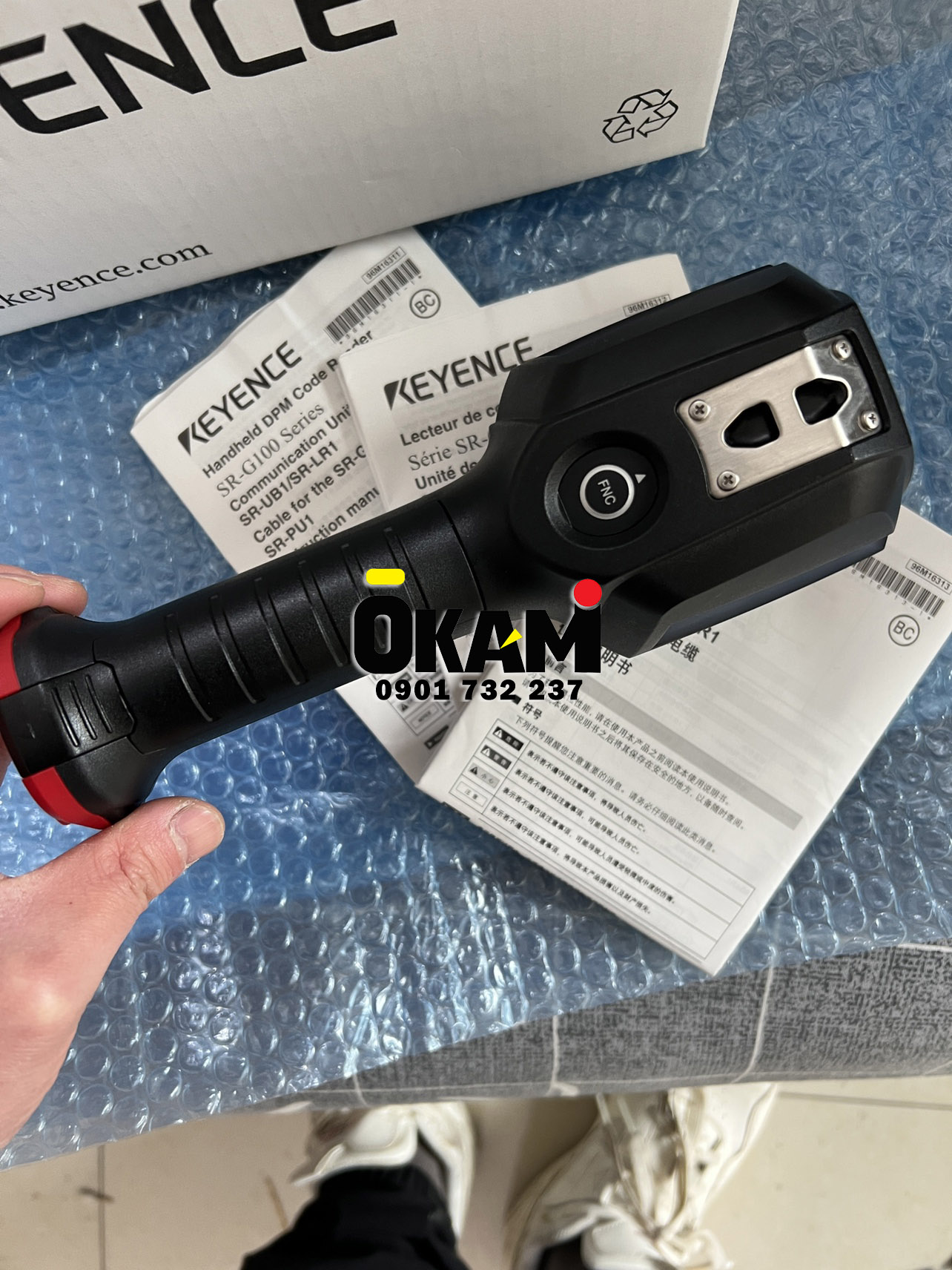

Máy quét mã vạch Keyence SR-G100 DPM

Model

SR-G100

Receiver

Sensor

CMOS image sensor

Number of pixels

900 × 900 pixels (2D code), 1280 × 900 pixels (Barcode)

Light emitter

Illumination light source

High-intensity red LED, High intensity blue LED

Reading specifications

Supported symbol

2D code

QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417, MicroPDF417, GS1 Composite (CC-A/CC-B/CC-C)

Barcode

CODE39, ITF, 2of5(Industrial 2of5), COOP 2of5, NW-7 (Codabar), CODE128, GS1-128, GS1 DataBar, CODE93, JAN/EAN/UPC, Trioptic CODE39, CODE39 Full ASCII, Pharmacode

Minimum resolution

2D code

0.127 mm 0.005"

Barcode

0.1 mm 0.004"

Focal distance

30 mm 1.18"

Communication specifications

Wireless communication

Bluetooth Ver. 2.1 + EDR Class 2

Wireless communication distance

Approx. 10 m 32.81' (line-of-sight)

Setup communication

USB 2.0 Full Speed

Environmental resistance

Enclosure rating

IP54

Ambient temperature

0 to +45°C 32 to +113°F/ When charging: 0 to +40°C 32 to +104°F

Ambient storage temperature

-10 to +50°C 14 to +122°F

Relative humidity

35 to 95% RH (No condensation)

Ambient storage humidity

35 to 95% RH (No condensation)

Ambient light

Sunlight: 10000 lux, Incandescent lamp: 6000 lux, Fluorescent lamp: 2000 lux

Operating environment

No dust or corrosive gas present

Drop resistance*

2.0 m 6.56', 50 times

Rating

Power consumption

Approx. 8.5 W

Dimensions

214 × 78.5 × 97.4 mm 8.43" × 3.09" × 3.83"

Weight

Approx. 375 g (incl. rechargeable battery pack)

Continuous usage time (Central value)

Approx. 10 hours (reading count: 10000)

Charging time

Approx. 4.5 hours
